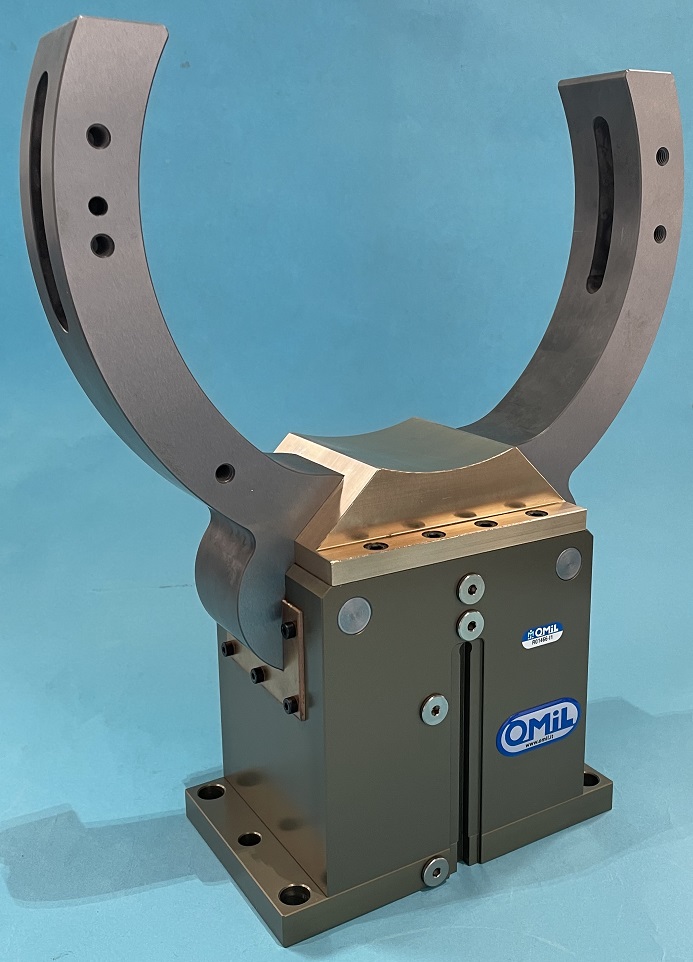

PGC 80
2-finger radial gripper


Angle 90° for jaw
Gripper torque 185 Nm
Rating IP 55

DOWNLOAD PDF CATALOGUE
CONFIGURE 3D DRAWING

Click on the 'ID' to view the product sheet
Code ID COMPARE (max. 4) All Version Closing moment (Nm) Closing force ( with finger lenght of "l" mm (N)) Recommended workpiece weight Weight Max. permissible finger length Closing moment generated by spring Device to maintenance the gripping force Rating IP Max. force axial CA Moment Mt max. Moment Mf max. Max. mass moment of inertia for finger Min. operating pressure Max. operating pressure Nominal operating pressure Min. air purge pressure Max. air purge pressure Closing time Opening time Closing/opening time with spring Max. permissible mass per finger Min. ambient temperature Max. ambient temperature Repeat accuracy Diameter Length Width Height Opening angle Fluid consumption double stroke
PGC 80 R01466 Design 3D standard 185 1156 0 0 160 0 55 1400 60 20 0 3 6 6 0 0 1.7 1.7 0 0 -10 130 0.15 0 180 114 300 90 0
/ 1
